ZLINE Legacy 36 in. Dual-Fuel Range with 6-Burner Gas Cooktop and Electric Convection Oven (RA36)

ZLINE Legacy 36-Inch Dual-Fuel Range with 6-Burner Gas Cooktop, RA36, Stainless Steel

Upgrade your kitchen with the ZLINE Legacy RA36 36-Inch Dual-Fuel Range, combining a powerful six-burner gas cooktop with a spacious electric convection oven. Designed for versatile everyday cooking, this freestanding range provides responsive flame control for simmering, sautéing, boiling, and searing, along with even convection heating for baking, roasting, and broiling.

The six-burner gas cooktop offers a range of heat outputs to accommodate different cooking techniques, from gentle simmering to high-heat preparation. Porcelain-coated cooking surfaces and durable cast-iron grates provide a practical foundation for preparing multiple dishes at once.

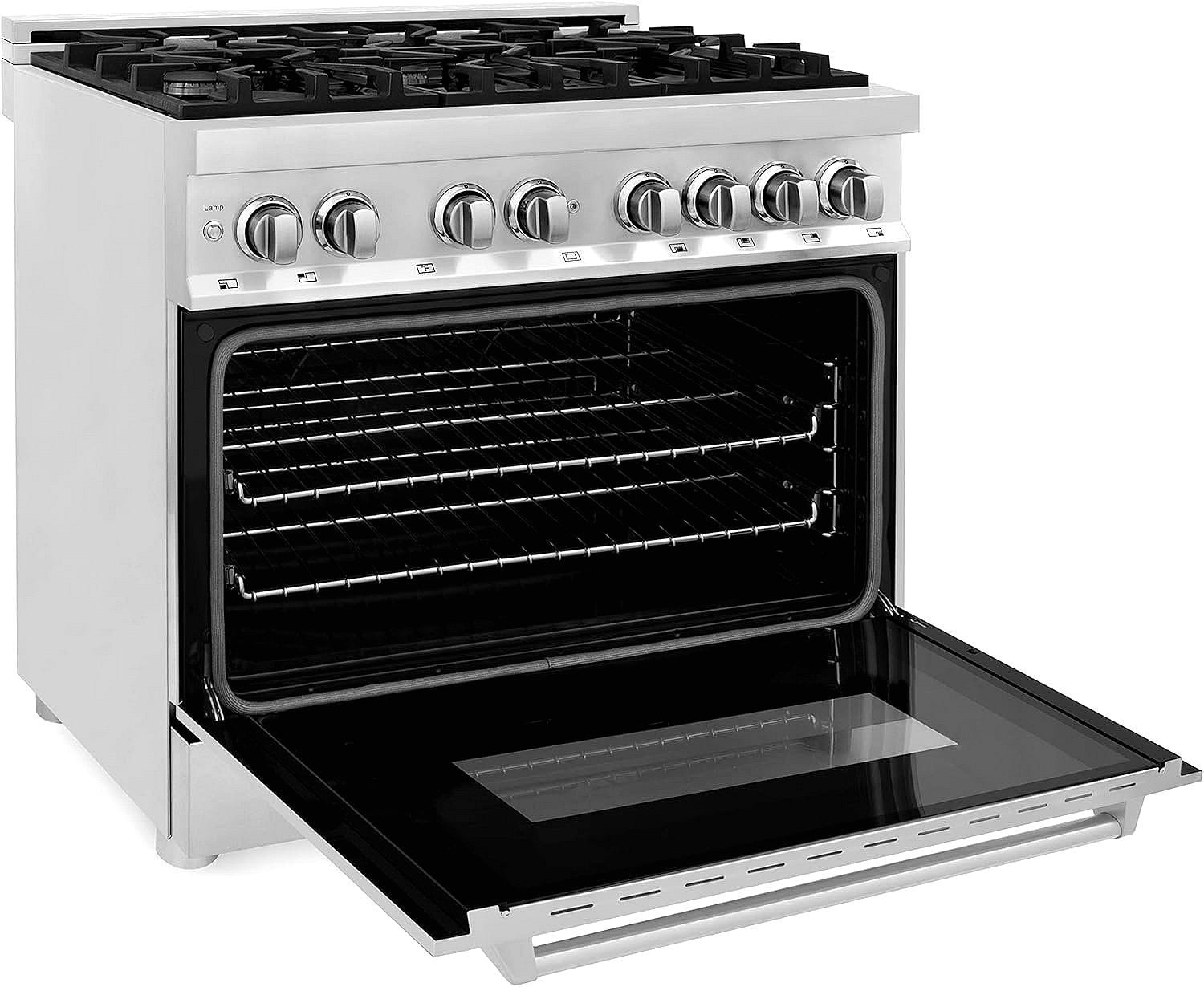

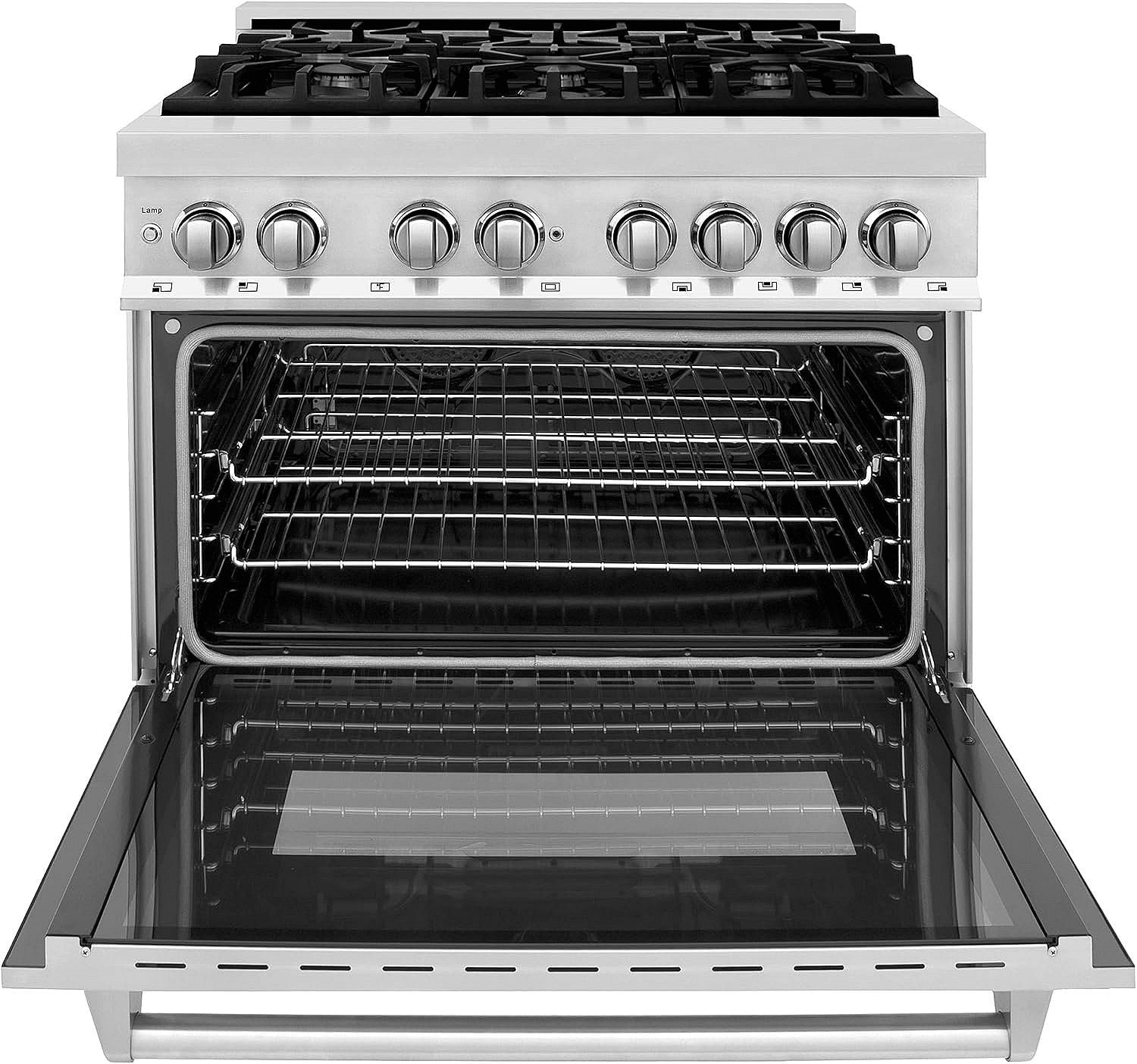

Inside, the 4.6 cu. ft. electric convection oven offers ample space for family meals, baked goods, and large roasting pans. The Landscape oven window, dual halogen lighting, and triple-layer glass door make it easier to monitor cooking progress. Two smooth-glide ball-bearing racks and StayPut hinges are designed to support convenient oven access and handling.

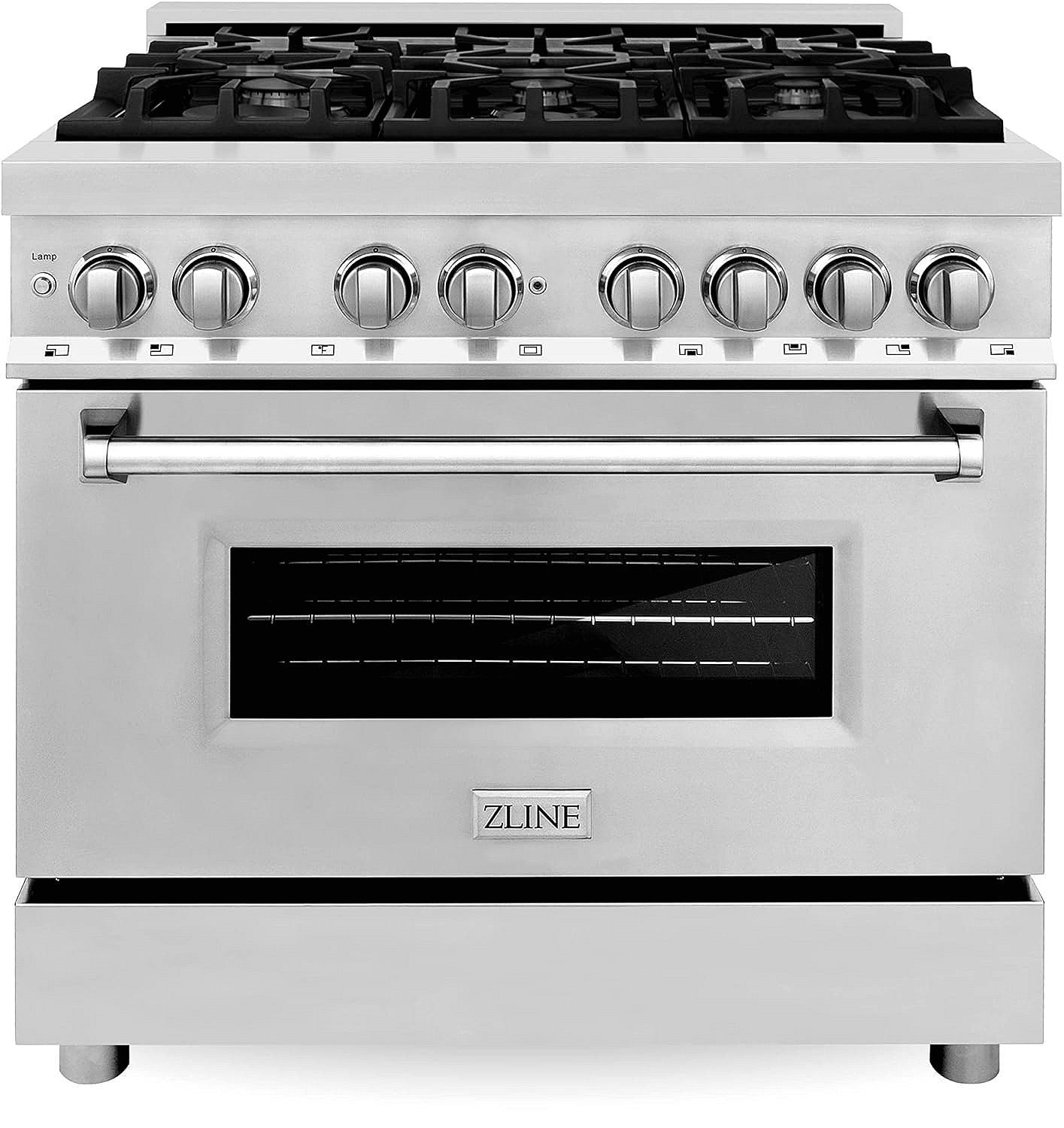

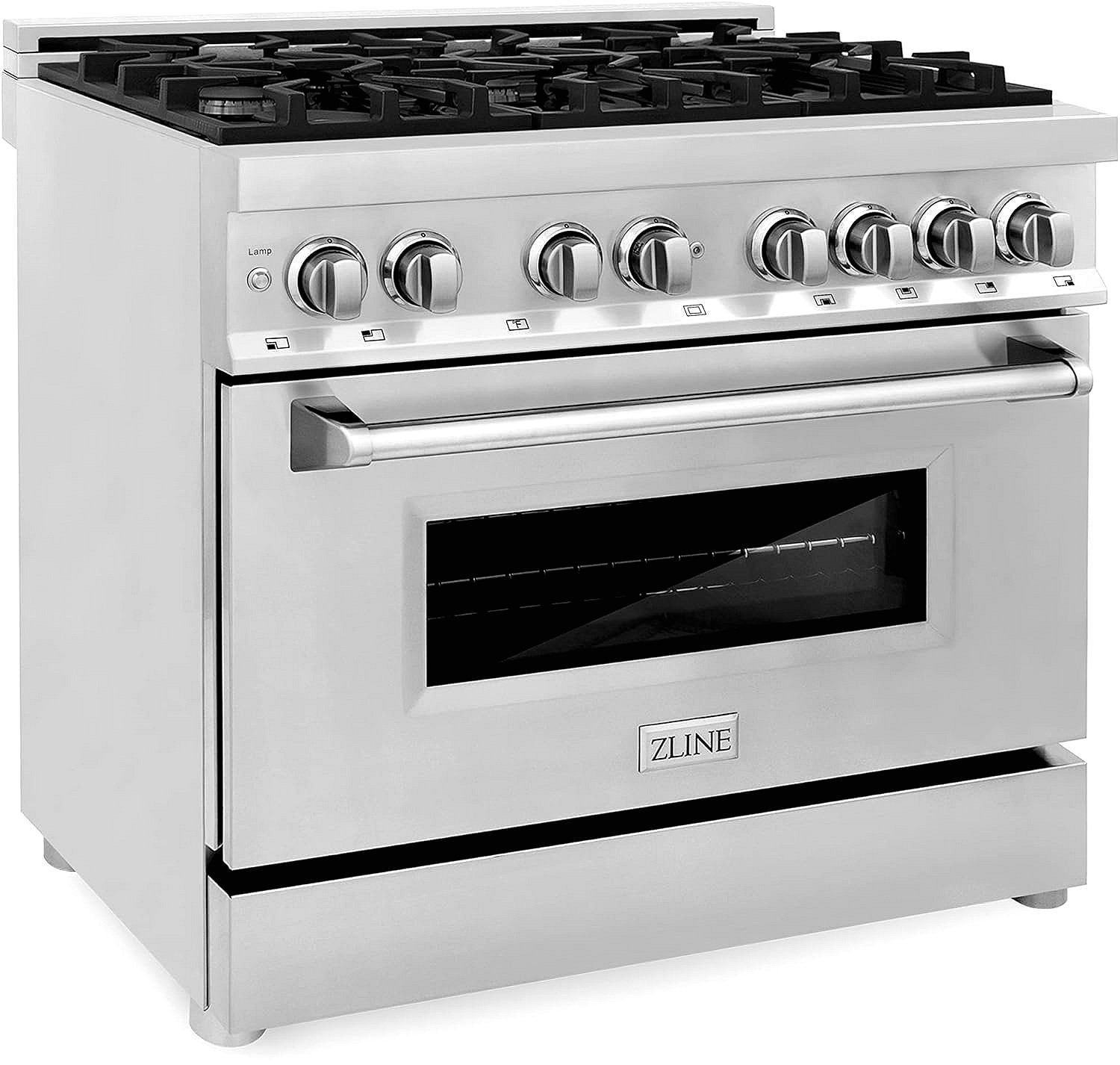

Finished in high-grade stainless steel, the ZLINE Legacy RA36 combines a professional-inspired appearance with practical cooking features. Adjustable legs allow the installation height to be set between 36 and 38.5 inches, helping accommodate different kitchen configurations.

An LP conversion kit is included for compatible installations where permitted. Conversion and installation should be performed by qualified professionals according to the manufacturer's instructions and applicable local codes.

Key Features

Dual-Fuel Cooking Performance

Combines a six-burner gas cooktop with an electric convection oven for flexible cooking, baking, roasting, and broiling.

Six-Burner Gas Cooktop

Multiple burner outputs provide flexibility for everyday meals, simmering sauces, boiling water, and high-heat searing.

Spacious 4.6 Cu. Ft. Convection Oven

The electric convection oven provides room for a variety of dishes, including large roasting pans and family-sized meals.

Durable Stainless-Steel Design

The stainless-steel exterior offers a professional-inspired finish suited to a range of kitchen styles.

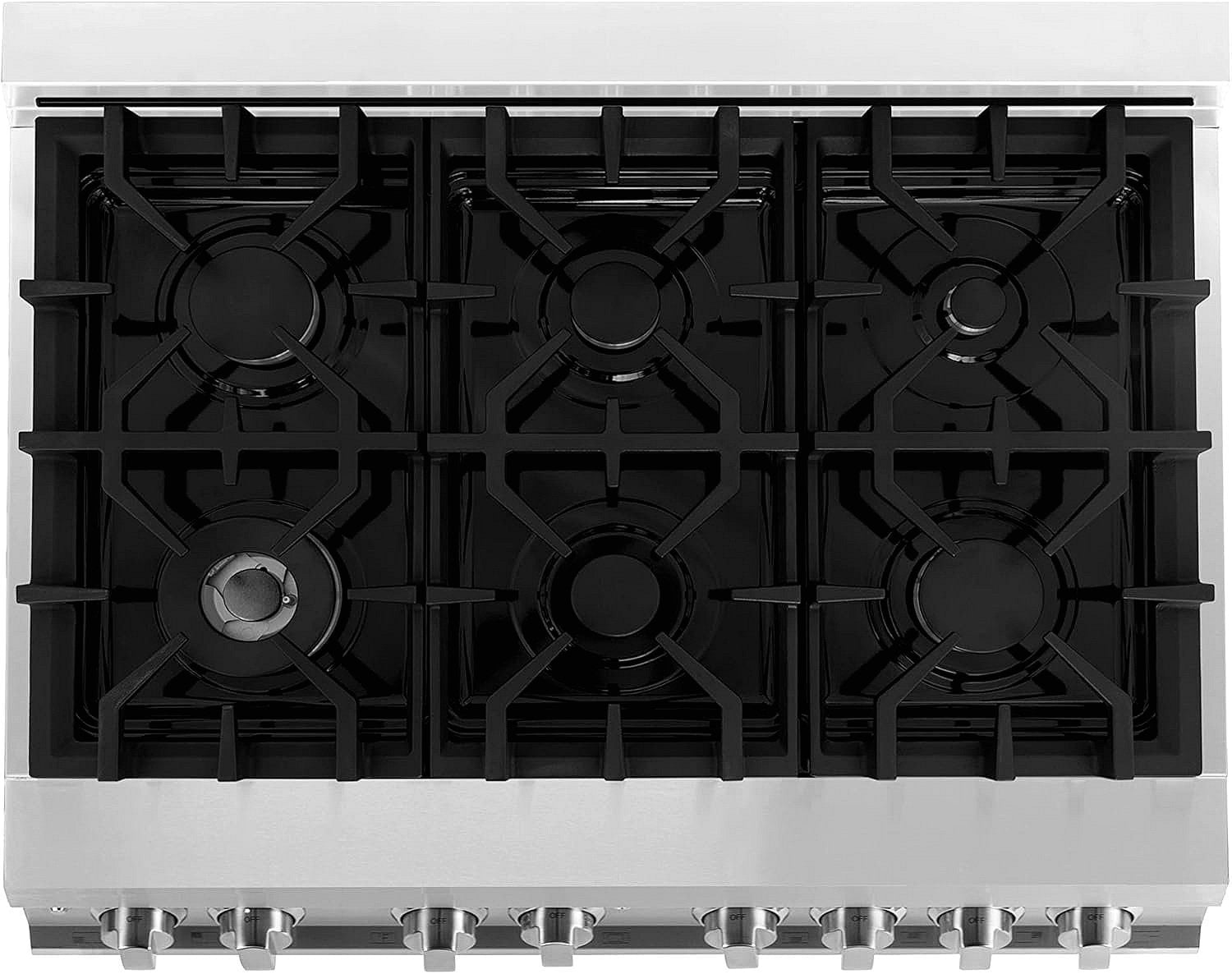

Porcelain Cooktop and Cast-Iron Grates

Designed to provide a sturdy cooking surface for regular kitchen use.

Enhanced Oven Visibility

A Landscape oven window and dual halogen lights help you monitor food as it cooks.

Triple-Layer Glass Door

The oven door features triple-layer glass and an aluminum mesh seal to support heat retention.

Smooth-Glide Oven Racks

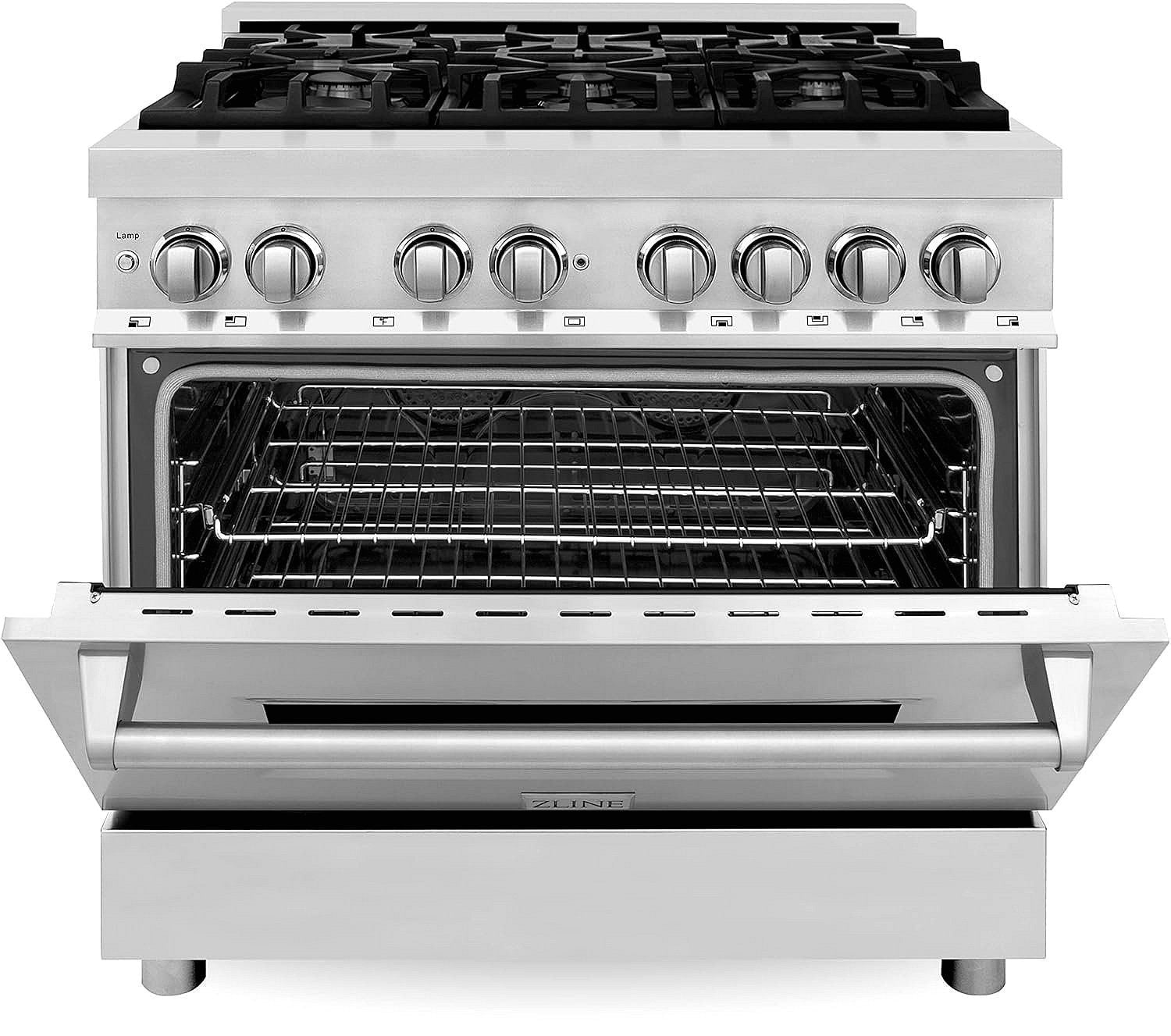

Two ball-bearing oven racks help make moving cookware in and out of the oven more convenient.

Adjustable Installation Height

Adjustable legs allow a range height of approximately 36 to 38.5 inches.

LP Conversion Kit Included

The included kit supports conversion to liquid propane for compatible installations. Professional conversion is required.

Technical Specifications

• Brand: ZLINE
• Series: Legacy
• Model / MPN: RA36
• Product Type: 36-inch freestanding dual-fuel range
• Finish: Stainless steel
• Cooktop Fuel: Gas
• Oven Fuel: Electric
• Number of Burners: 6
• Burner Output: 4,500 to 18,000 BTU, depending on burner
• Total Cooktop Output: 67,500 BTU
• Oven Capacity: 4.6 cu. ft.
• Oven Type: Electric convection
• Oven Interior Dimensions: 24.875 in. W x 17.75 in. D x 16 in. H

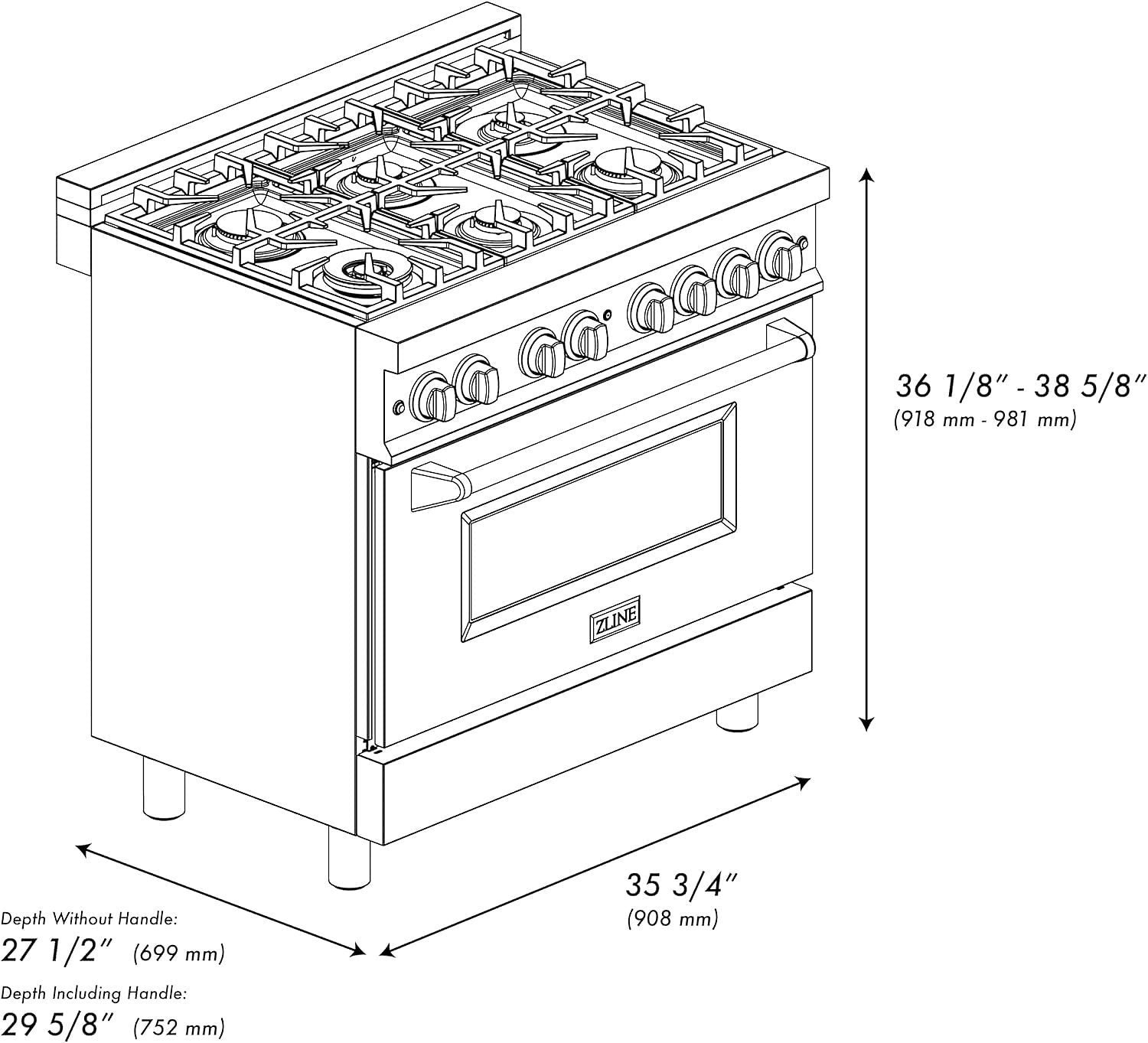

• Overall Dimensions: 35.75 in. W x 27.5 in. D x 36.125 in. H
• Adjustable Height: 36 to 38.5 in.
• Depth with Door Open 90 Degrees: 41.8 in.
• Electrical Rating: 240 V, 60 Hz, 15 A
• Cooktop Surface: Porcelain
• Grates: Cast iron
• Oven Lighting: Dual halogen lights
• Oven Racks: Two smooth-glide ball-bearing racks
• LP Conversion Kit: Included
• Product Weight: Approximately 253 lb.
• Certification: CSA Listed, as specified
• Warranty: One-year parts and service warranty; limited lifetime burner warranty, subject to terms

Installation and Safety Information

Professional installation is recommended. Before purchasing or installing the ZLINE Legacy RA36, confirm the required gas supply, electrical circuit, ventilation, cabinet clearances, anti-tip protection, and local building-code requirements.

The range is designed for the specified gas and electrical connections. Any LP conversion must be completed by a qualified professional using the appropriate manufacturer-approved procedure. Review the current installation manual for exact requirements.

Enjoy versatile dual-fuel cooking and a professional-inspired stainless-steel design with the ZLINE Legacy RA36 36-Inch Range.
